An ION Action runs when an event happens in ION, reads the data involved, and can allow the change, block it with a message, or surface a non-blocking warning. You manage actions two ways:
  • Actions page: a dedicated UI in ION with a built-in code editor for creating and managing actions.
  • GraphQL API: direct rule creation, update, and deletion for programmatic deployment.

​
Common patterns

These are the high-value validation rules most customers set up first:
  • Required fields on creation: a quality issue must have a defect type and a major subsystem before it can be saved.
  • Block a status transition: an issue can’t move to In Review until it has an assignee.
  • Approval gate: a procedure can’t be released without the required approval.
  • Block run closure if the aBOM is incomplete.
See the example actions for working configurations.

​
Before you start

Actions must be enabled at the organization level before any action can fire. Confirm the setting in the built-in GraphiQL editor:
  1. In ION, select GraphQL in the sidebar to open the GraphiQL editor.
  2. Run this query to check the current setting:
    {
  me {
    organization {
      id
      _etag
      settings {
        rules {
          enabled
        }
      }
    }
  }
}
  3. If enabled is false, an admin can turn it on with the updateOrganization mutation. See the API reference for the full mutation shape.

​
Action fields

An action is defined by these parts. Title, target, and event are form fields; context and code are tabs in the built-in editor.
  • Title: identifies the action and appears in its toast notification and the audit log.
  • Target: the object to watch, such as Run, Issue, or Procedure, chosen from a dropdown.
  • Event (labeled Event Type in the editor): when the action runs against the target: Create, Update, or Delete.
  • Context: a GraphQL query for the data your code needs, such as the target’s fields, related records, and user roles. Your code reads from this data.
  • Code: a Python script that runs when the event fires. It reads the context and decides the outcome: raise ValidationError to block the change with a message, raise ValidationWarning to warn without blocking, or do neither to allow it. The code is read-only; it can’t write data or call external systems.
A validation action blocks by design: when the code raises ValidationError, the change is rejected with the message you set. Use this for required-field and approval-gate actions. To surface a message without blocking, see Create a warning action below.

​
More on context

Alongside the target’s data, the context also provides currentUser (the acting user’s email, roles, and teams) and a changes object describing what the event modified. It’s keyed by the camel-cased table name, then by field, and each entry holds { "new": ..., "old": ... }, with the old value null on a create and the new value null on a delete. Field names are snake-cased, and attribute tables are keyed by the attribute’s name. A changes object for a procedure update can look like this:
{
  "procedures": {
    "status": { "new": "released", "old": "in_review" }
  }
}
Other targets produce different keys, one per table the event touched. A few examples:
{
  "issues": {
    "status": { "new": "in_progress", "old": "pending" },
    "must_close_by_run_step_id": { "new": 2116, "old": null }
  },
  "issuesAttributes": {
    "Issue Origin": { "new": "Engineering", "old": null }
  },
  "issueApprovalRequests": {
    "status": { "new": "approved", "old": "pending" }
  }
}

{
  "partsInventory": {
    "status": { "new": "unavailable", "old": "available" },
    "lot_number": { "new": "Lot Test 123", "old": null },
    "location_id": { "new": 19, "old": 67 }
  }
}

{
  "partsKits": {
    "assigned_team_id": { "new": 2, "old": null },
    "delivery_location_id": { "new": 19, "old": null }
  },
  "partKitAttributes": {
    "Date Kitted": { "new": "2025-09-08T07:00:00", "old": null }
  }
}
Use changes to branch on what actually changed rather than the final state. For example, to act only when a procedure’s status changes to released, rather than on every procedure update:
procedure_changes = context.get('changes', {}).get('procedures', {})
if procedure_changes.get('status', {}).get('new') == 'released':
    # the procedure was just released; run your logic here
Read context defensively. A chained lookup like context.get('part', {}).get('attributes', {}) throws if part exists but is None, so read one level at a time with a fallback, such as part = context.get('part') or {}.
When several actions share a target and event, they run in sequence in an order you don’t control and share one merged context, so keep each action self-contained.
When two actions on the same target and event filter the same field differently in their context (for example, both query Attributes(filters: {...}) with different keys), the merged query fails. Give each filtered field an alias, such as deptAttr: Attributes(filters: {key: {eq: "Department"}}), and reference the alias in your code.

​
Create an action

  1. In ION, open Actions.
  2. Select Create Action.
  3. Set the title, target, and event.
  4. In the context, query the data your action needs, then write the code in the built-in editor. See the fields above for what each one does.
  5. Save the action.
To create an action programmatically, use the createRule mutation. See the API reference for the mutation shape, and the Examples for working action configurations.
ION Actions can block changes in production. Test a new action in your sandbox before promoting it. For repeatable deployment, author through GraphQL and keep the action definition in your platform repo so you can re-deploy it from CI.

​
Create a warning action

A warning action is the non-blocking version of a validation action: the change still saves, a warning message is shown alongside the result, and the warning is recorded in the execution logs. Use a validation action for hard requirements, such as a missing required field or an approval gate, and a warning action for soft ones, such as a skipped recommended step or an out-of-range but allowed value. To make an action warn instead of block, raise ValidationWarning instead of ValidationError. Keep ruleType: VALIDATION; the exception type drives the behavior.
An action can raise either ValidationError or ValidationWarning, never both. If you need both for the same event, write two separate actions.
if context.get('runStep', {}).get('status') == 'COMPLETE' and any(
    issue.get('status') != 'RESOLVED'
    for issue in context.get('runStep', {}).get('issues', [])
):
    raise ValidationWarning("This Run Step was completed while it still has open issues. Confirm the issues don't need to be resolved first.")
The run step still completes, and the operator sees the warning. Warnings return in the GraphQL response under extensions.warnings and appear as a non-blocking toast.
If a warning action and a validation action both fire in the same transaction, the error wins and the warning isn’t shown, though it’s still written to the execution logs.
Orange warning toast in the bottom-left of the New ION interface reading: 'Warning — [Rule 93] Warn when a Run Step is completed with open issues. This Run Step was completed while it still has open issues. Confirm the issues don't need to be resolved first.'
Only one warning surfaces per change. If several warning actions fire for the same change, only the first appears; the next shows after the operator fixes it and resubmits.

​
Edit an action

  1. In ION, open Actions.
  2. Select the action to open its detail page.
  3. Update the title, target, context, or code. The title appears in the action’s error and toast messages, so keep it meaningful.
  4. Select Save.
To edit an action programmatically, use the updateRule mutation. See the API reference for the mutation shape.
Editing a live action changes its behavior right away. Test your changes in your sandbox before editing a production action.

​
Enable or disable an action

In the Actions list, select one or more actions with the checkboxes, then enable or disable them. A disabled action isn’t evaluated, which lets you stage an action before turning it on in production.

​
Share an action across environments

To copy an action to another environment, open it and select Share. ION generates the action’s createRule mutation; copy it and run it in the target environment’s GraphiQL editor to recreate the action there.

​
Delete an action

  1. In ION, open Actions.
  2. Find the action you want to remove.
  3. Delete it and confirm. To remove several at once, select them with the checkboxes and delete them together.
To delete an action programmatically, use the deleteRule mutation. See the API reference for the mutation shape.
Deleting an action is permanent. If you only want to stop it from running, disable it instead.

​
How the code is structured

When an event and target combination matches several actions, those actions are squashed together at run time. Squashing merges both the code and the requested context so every triggered action runs with the data it needs. For example, two actions are both configured with event CREATE and target RUNS:

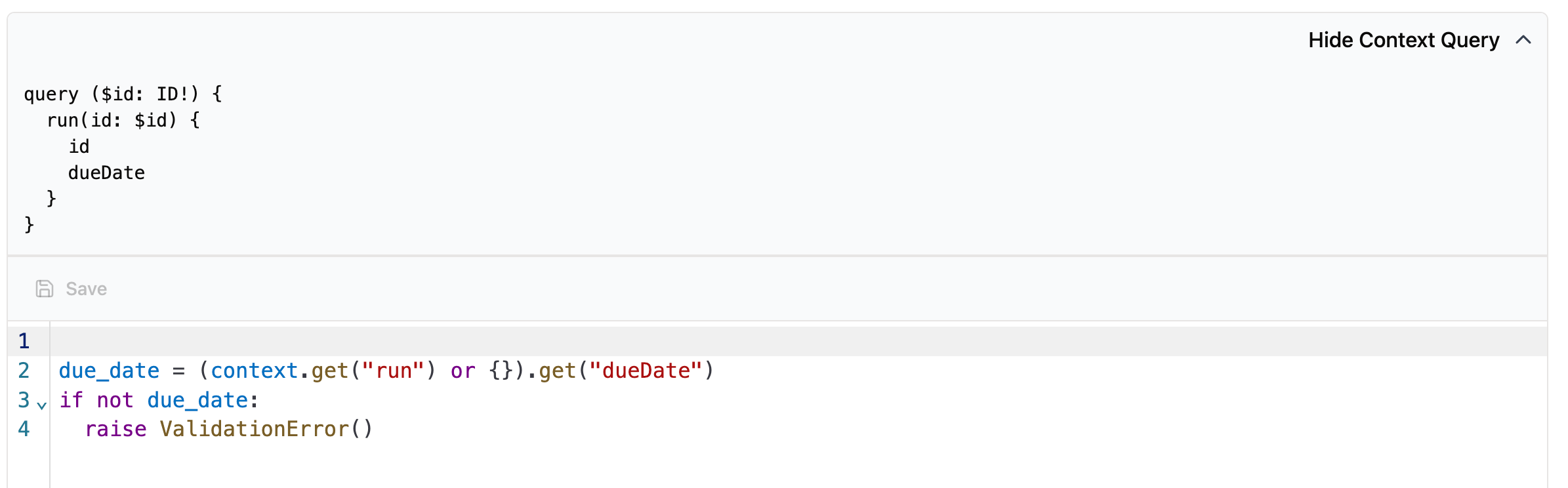

ION Action 535 configuration: on create runs, selects dueDate in context and ensures it is filled out.

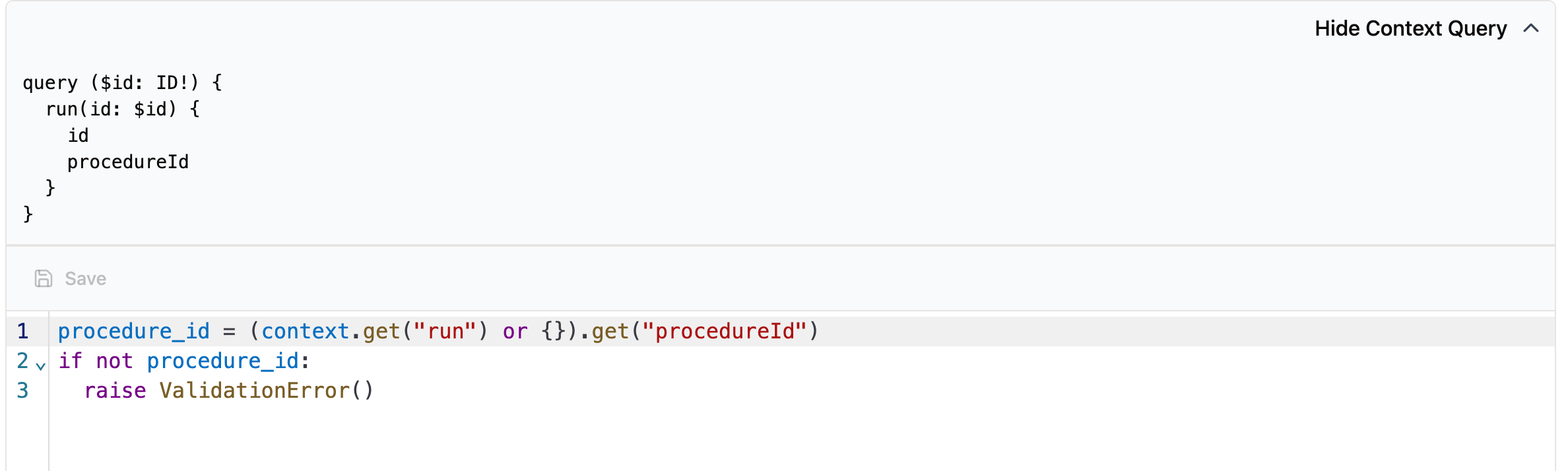

ION Action 240 configuration: on create runs, selects procedureId in context and ensures it is filled out.
When a run is created, both actions trigger and are squashed into a single execution flow, shown in the execution log:

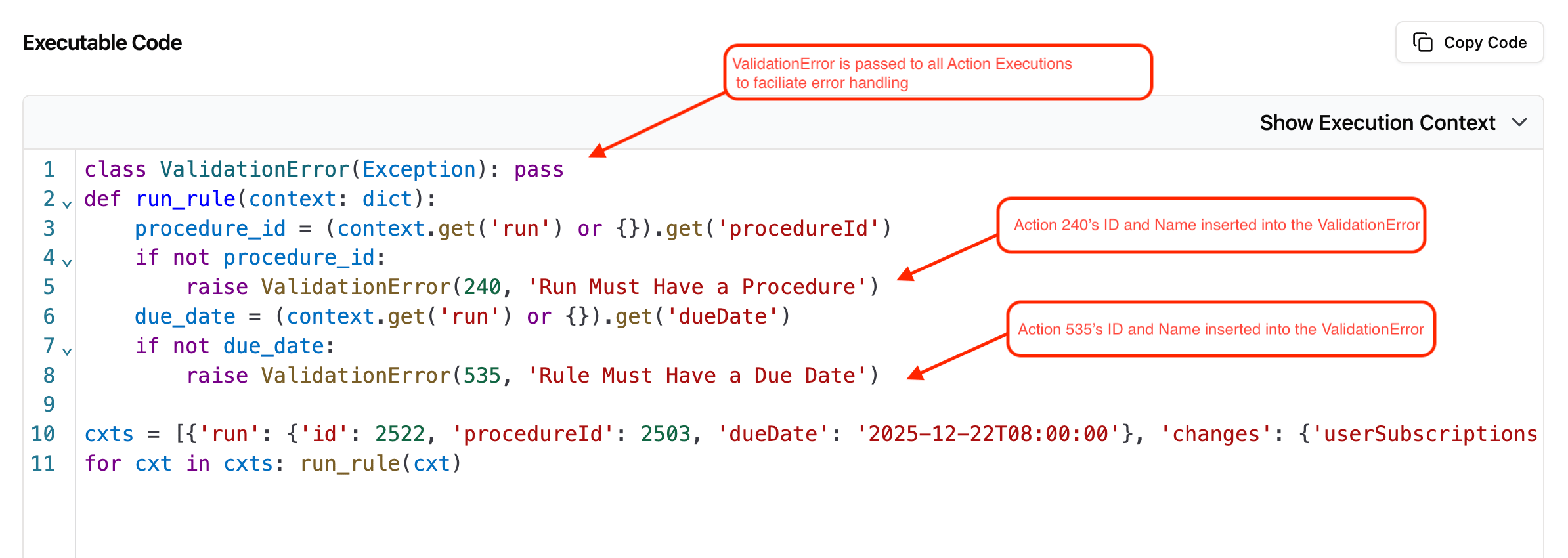

Execution log code for creating a run with actions 535 and 240 squashed together.
The squashed code includes a few standard pieces:
  • ValidationError: a class defined in every execution log. If an action raises it, the action’s ID and name are injected into the code so it’s clear which action caused the failure.
  • run_rule: wraps each triggered action into one executable unit and runs them in sequence, with validation actions before warning actions so a block takes precedence.
  • ctx: the combined context for all squashed actions. Each action declares the fields it needs, and squashing merges them into one context object.
In the example, action 535 requests dueDate and action 240 requests procedureId, so the resulting context contains both:

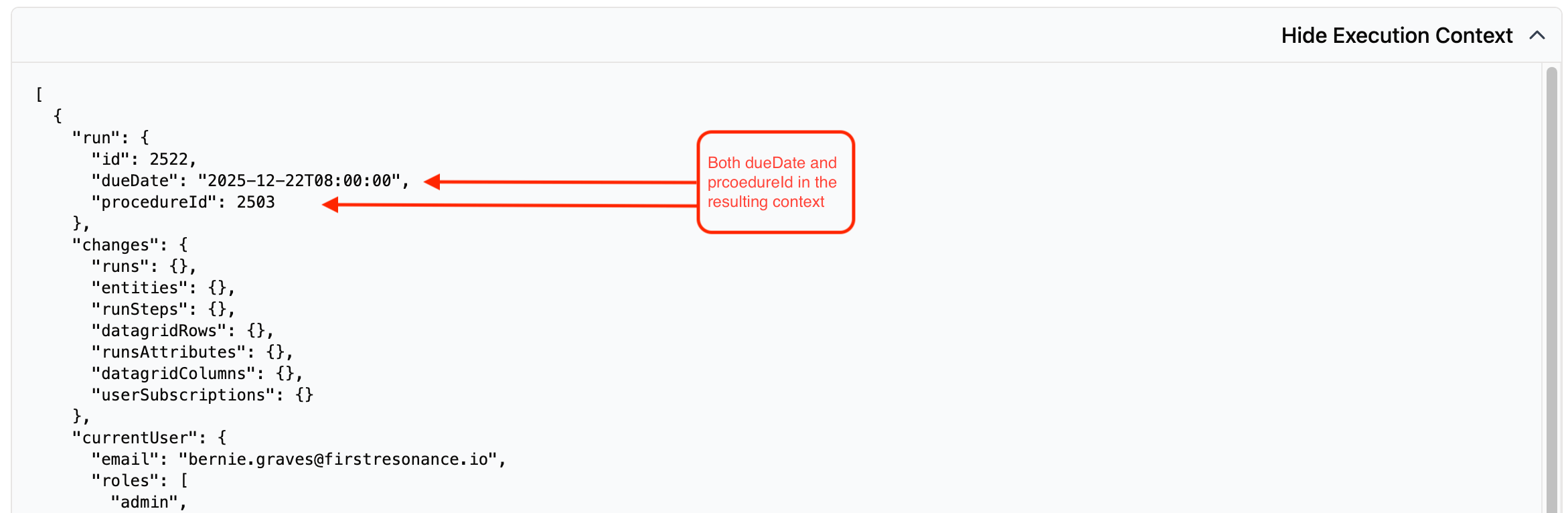

Execution context combining dueDate and procedureId requested by both actions.
